Thread: Explanation of the different versions of the PS2.

How do I know which Playstation2 version I have?

On the back side of your Playstation2 you find a number beginning with "SCPH-", the following number is the model number!




Version 0

SCPH-10000, SCPH-15000 and SCPH-18000 (very first released japanese PS2 consoles)

These consoles did not have an expansion bay.


Version 1, 2 and 3

The model # can be SCPH-30000, SCPH-30001, SCPH-30002, SCPH-30003, SCPH-30004
Turn the playstation upside-down and check how many screws there are.
The screws are covered by black plastic or rubber hole covers.
You can easily remove the screw covers by prying them off with a small flat head precision screwdriver.



If you have 10 bottom screws you have a V1, V2 or V3 PS2 model.
Version 4-11 consoles can be differentiated from previous versions as they only have 8 screw covers on the underside of the console.



Console Versions 1 to 3



Console Version 4, 5/6 and 7


Version 4

The model # can be SCPH-30000, SCPH-30001, 35001, SCPH-30002, 35002, SCPH-30003, 35003, SCPH-30004, 35004

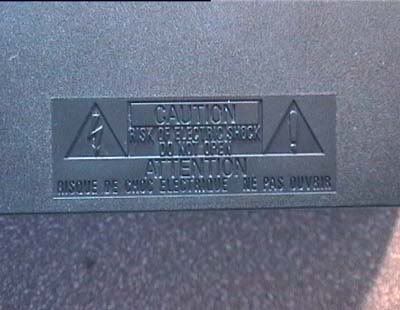

If the marked screw doesn't show up in the expansion bay of your PS2 then please take a look on the bottom of the PS2 case. If there is an electrical hazard warning on the bottom of the case then it is a V4.




Version 5 and 6

The model numbers can be SCPH-30000R, SCPH-30001 R, SCPH-30002 R, SCPH-30003 R, SCPH-30004 R, SCPH-30006 R
But also some SCPH-30000, SCPH-30001, SCPH-30002, SCPH-30003 and SCPH-30004 PS2 have a V5/V6 main board.

Make sure to double check that the screw shown below is actually in your system.
Simply take out the expansion slot cover,turn round your PS2 and check to see if the screw shown below is in your console, if it is, you have a V5/V6 console.

If you dont have the screw in the expansion slot you have an older V1-V4 PS2 baord.




Version 7

If your model# is SCPH-39000, 39001, 39001/N, 39010/N, 39002, 39003, 39004, 39008 or 37000 you have a V7 PS2 main board.


Version 8

Only released in the japanese market. The model # can be SCPH-39000, or, SCPH-39006 (GH-022 BIOS 090)


Version 9

If your model # is SCPH-50000, 50001, 50010, 50002, 50003 or 50004 you have a V9 PS2 main board. (GH-023 board)
SCPH 50001 / 50010 date code 3a-3b-3c is a version 9. SCPH-55006/55007 GT ( white console ) It is also a v9 console (GH-023 / Bios111)


Version 10

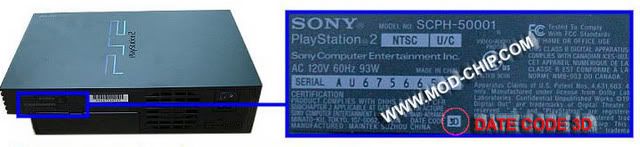

If have a US/CANADA SCPH-50001 AND if you can find DATE CODE 3D as shown below,
you have a v10 PS2 main board. (GH-026 board)

SCPH 50001 / 50010 date code 3D is a version 10. Update: SCPH-50001 date code 4C is also a v10

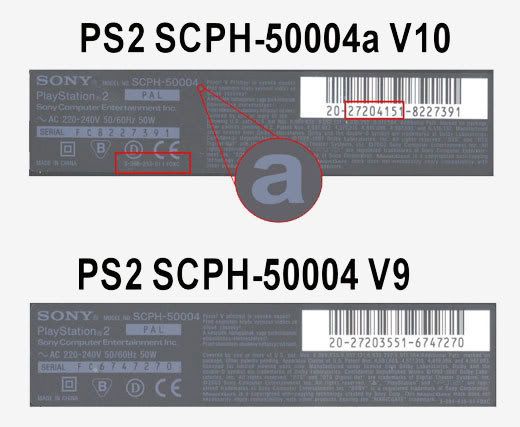

If have a PAL (EUROPE/AUSTRALIA/ISRAEL) SCPH-50002/3/4 AND if you can find "a" as shown below,
you have a v10 PS2 main board. (GH-026 board)



(Another way to find out if its a v9/v10 start up PS2 with no game in it, press triangle and check dvd driver version dvd ver 3.00 = v9 & dvd ver 3.02 (U) = v10)


Version 11

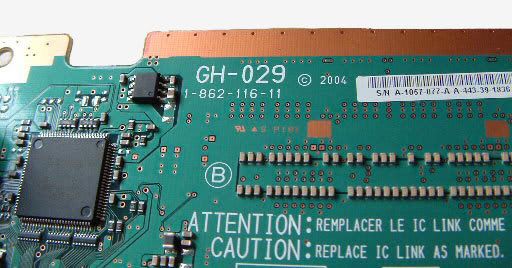

Only released in Europe. The model # is SCPH-50004 with a GH-027 or GH-029 board. Same board as v10 but console comes with a new laser unit.




Version 12

The new mini PS TWO SCPH-7000x

SCPH-70011 CB (for North America)
SCPH-70012 CB (for United States)
SCPH-70002 CB (for Oceania)
SCPH-70003 CB (for UK)
SCPH-70004 CB (for Europe)
SCPH-70000 CB (for Japan)


Version 13

SCPH-70001 (for North America)
The Warranty Sticker location has moved from the back and is now intentionally located directly over one of the (6) screws on the v13 underside.

Another major change includes the removal of the Phone Line from the back of the v13 console, however, the Network Line is still present for on-line gaming fortunately. Lastly, there is a small layout change around the Motor Driver IC of the PSTwo mainboard (now GH-032-XX), and the Laser Lens is number PVR-802W with the BiOS IC being number B1110A D1010U.

SCPH-70004, 70003, 70002 (for PAL = EUROPE/AUSTRALIA/ISRAEL)
Mainboard is GH-032-13, Laser Lens is number SPU3170G and the BiOS IC is MX Brand B2110A D1010U.


Version 14

SCPH-75001 (for North America)
The motherboard is a bit different from last SCPH-70011/70012/70001 versions.

Model Number: SCPH-75001 US, Console Version updated: v14, Main Board updated: GH-037-01, Laser Lens Number: PVR-802W, BiOS Part Number: B6120B D0020U, and DVD Control IC: SONY CXD 716080.

SCPH-75004, 75003, 75002 (for PAL = EUROPE/AUSTRALIA/ISRAEL)


Version 15

Latest slim PS2 release.

2 types released:
- Version 15A : SCPH-77001a / GH-051-02
- Version 15B : SCPH-77001b / GH-051-51

SCPH-77004, 77003, 77002 (for PAL = EUROPE/AUSTRALIA/ISRAEL)

- Pickup Lens No ................................... PVR-802W
- Full Optical Block No ........................... TDP-182W (New!)
- Bios Part No ...................................... B6130B D0020U (New!)
- DVD Control IC ................................. CXR 716080 (New!)

mine is model SCPH 79002 : so what ver. is it? =\
its a slim btw
